Product Overview:

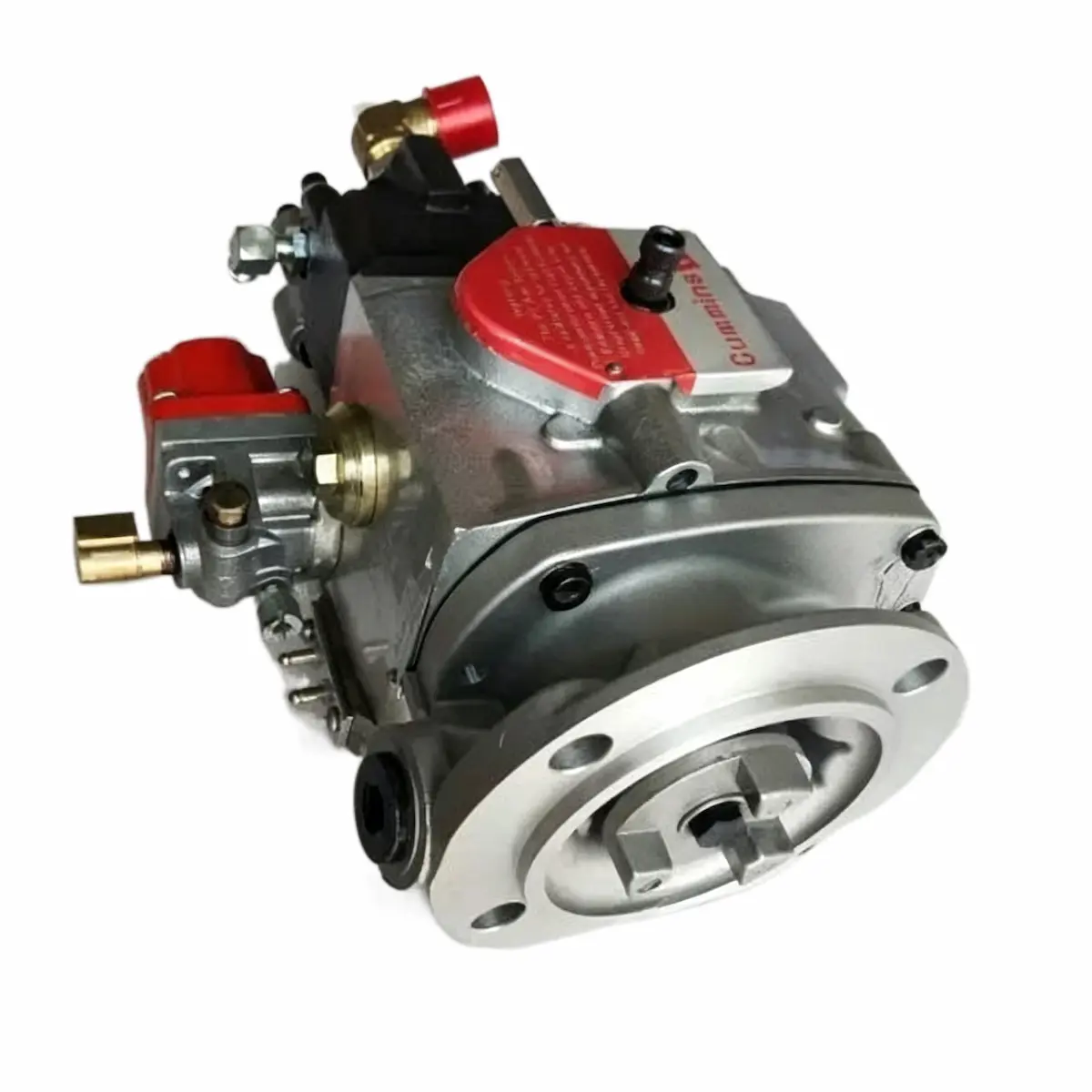

The 4951415 is PT fuel pump exclusively for Cummins CCEC KTA38-M2 marine main engines, and it is also compatible with KTA19-G2 constant-speed generator sets. Its primary operating condition is continuous alternating high-load propulsion of offshore vessels, followed by steady-state power generation for stationary industrial power stations. Its housing, internal flow rate and anti-corrosion performance are all calibrated for heavy-duty operating conditions featuring high vibration, salt spray and prolonged full-load operation.
4951415 Fuel pump Specification:
Parameter
Specification
Part No.
4951415
System Type
Mechanical PT Fuel Pump, Genuine CCEC Chongqing Cummins Assembly
Drive Mode
Driven by engine camshaft gear
Housing & Internal Parts
High-strength cast iron housing, precision alloy steel plunger pairs
Seals
FKM oil seals, oil-resistant NBR rings with upgraded marine anti-corrosion treatment
Mounting
Horizontal side flange, standard K-series pump interface
Applicable Fuel
0# / -10# industrial diesel, marine fuel oil; long-term use of high-sulfur non-standard heavy oil forbidden
Calibrated Flow
Continuous full-load fuel supply for 800–1350 HP KTA38-M2 marine engines
Governor Profile
Marine soft speed control, suppress speed fluctuation under alternating loads
Calibrated Idle Speed
600 rpm (standard marine idle)
Working Oil Pressure
Inlet low pressure: 0.07–0.17 MPa; PT main supply pressure: 0.69–1.03 MPa
EFC Solenoid
24V DC (universal for industrial & marine, 12V cannot replace directly)
Governor Spring
High-flow heavy-duty spring, supports long-run operation above 90% rated power
Main Fit Engine
12-cylinder KTA38-M2 marine propulsion engine (800–1350 HP)
Compatible Units
KTA19-G2 gensets (450–700 HP), NTA855 construction machinery
Displacement Coverage
19L / 38L Cummins K-series mechanical PT engines
Speed Range
Idle 600 rpm ~ Rated 2100 rpm (marine rated speed)
Operating Temperature
-30℃ ~ +150℃
Application:
✅Main engines for inland cargo vessels, main engines for small and medium coastal workboats, main engines for engineering operation vessels
✅Stationary industrial main generator sets, backup emergency power stations for data centers / hospitals / shopping malls, onshore stationary generator sets for oil fields
Why Choose US?
✅100% genuine Cummins CCEC parts
✅Professional technical support for fitment verification・
✅Competitive wholesale pricing
✅Fast global shipping
