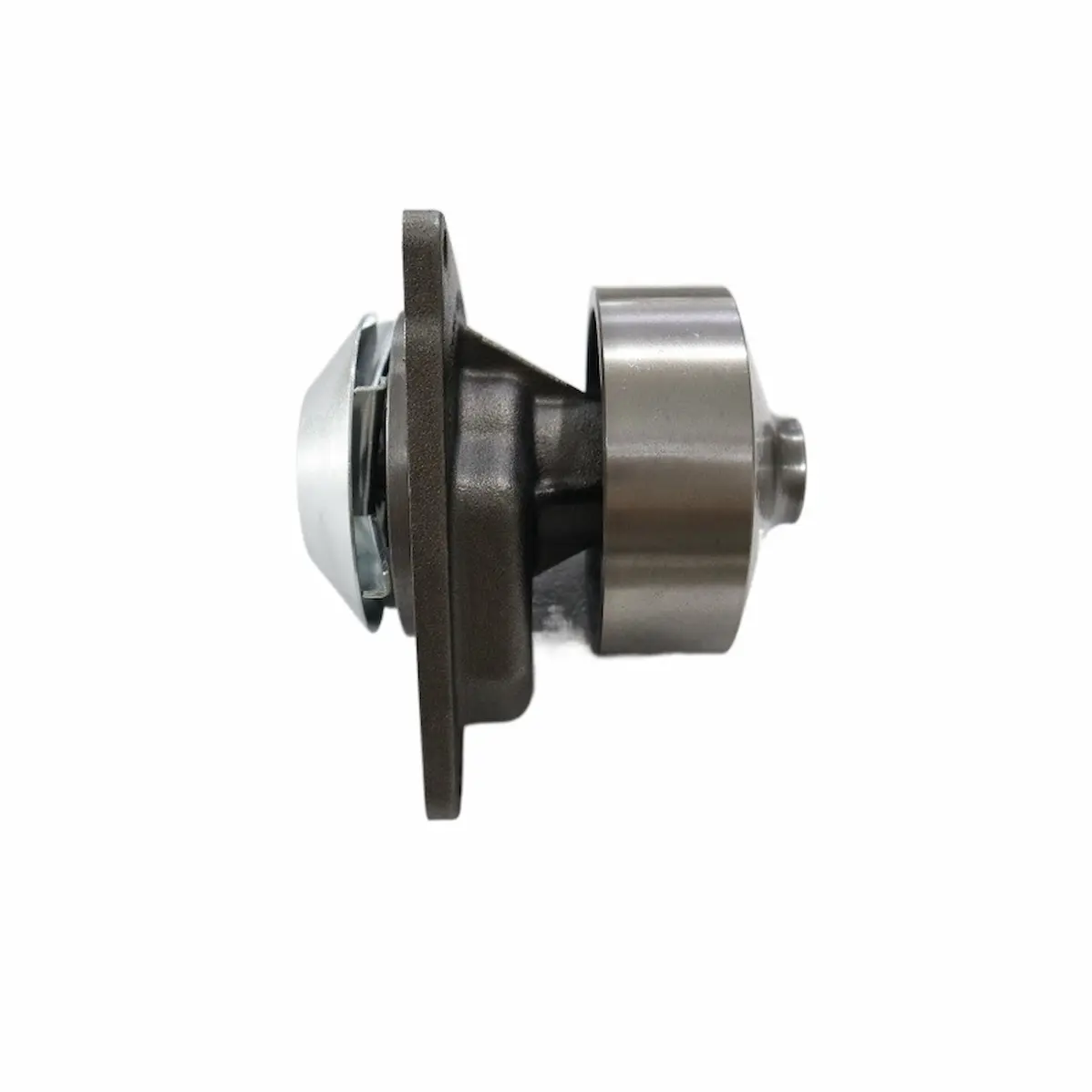

Cummins 3800974 Water Pump For 6CT 6CTA Engines

Quality Standard : Genuine Cummins Quality(DCCE)
Lead Time : 3-15 Days Global Shipping
Pricing : China Cummins Wholesale Price
Payment Terms : T/T, Western union, Paypal
MOQ : 1piece(Bulk Orders Accepted）
Product description：3800974 Cummins DCEC 6CT 6CTA Water Pump.China Cummins Supplier With Price Advantage & 100 Original Cummins Quality & Fasting Shipping.
INQUIRY

Product Overview:

This heavy‑duty fresh‑water cooling assembly is engineered for 8.3L diesel engines. Built for high‑load cycles across trucks, construction machinery and stationary generators, it delivers stable coolant circulation to prevent overheating in harsh global field operations.

Key Specification:

Item	Specification
Part Number	3800974 Belt‑driven Centrifugal Fresh Water Cooling Pump
Interchange PN	3285323, 3929612, 3923568
Compatible Engine	6CT8.3 / 6CTA8.3
Source	CCEC Chongqing Cummins
Drive Type	Pulley‑driven, clockwise rotation
Construction & Material	Cast iron housing, dynamically balanced cast‑iron impeller, SiC‑graphite mechanical water seal, heavy‑duty ball bearing
Net Weight	4.02 kg (8.85 lbs)
Mounting	Short‑nose design, 3‑bolt flange direct‑fit, pre‑fitted O‑ring
Rated Flow	135 L/min (35.7 GPM) @1800rpm
Coolant Media	Ethylene‑glycol antifreeze for fresh‑water circuit. Not for seawater service
Operating Speed	1200‑2500 rpm
Operating Temperature	‑40 ~ +105℃

Application:

✅Highway Heavy‑Duty Trucks: Heavy‑duty freight trucks, long‑haul tractors

✅Construction Machinery: Excavators, loaders, motor graders, road rollers, cement mixers

✅Mining Equipment: Open‑pit mine auxiliary trucks, mobile mining construction machinery

✅Stationary Power Generation: Industrial stationary diesel generator sets, backup emergency power units

Frequently Asked Questions：

Q: Can I use this pump for marine seawater cooling?
A: No. It is a fresh‑water cooling pump only. Do not apply for seawater circuit; please select dedicated marine seawater pump for marine applications.

Q: Do I need to buy a gasket separately?

A: O‑ring seal is included. Additional installation gaskets should be prepared according to local service practice.

Q: What rotation direction does it run?
A: Clockwise (CW), belt‑driven centrifugal type.
