Product Overview:

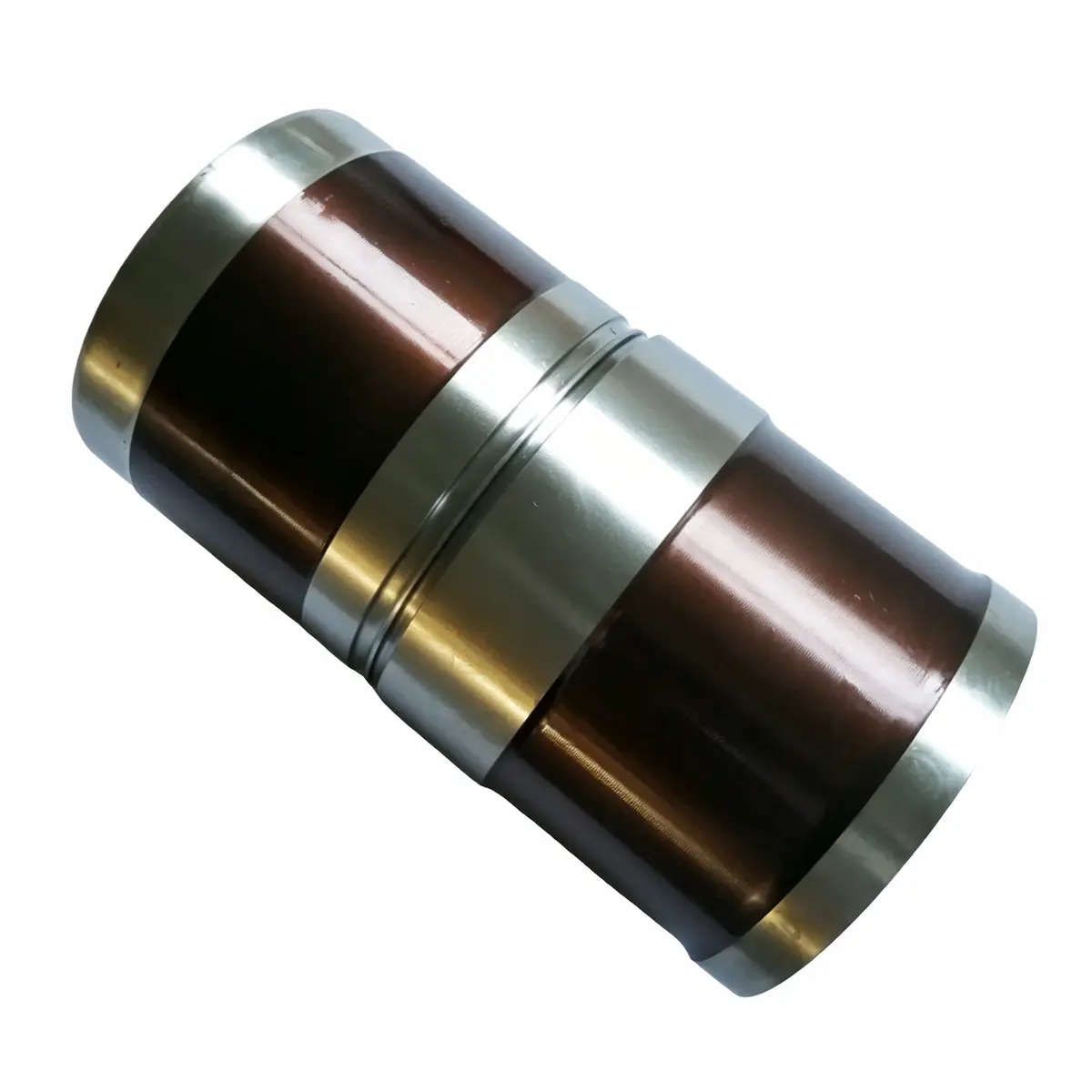

The 3948095 is the mainstream CCEC wet cylinder liner for Cummins 6CT8.3/6CTA8.3 ISC ISL engines. Made of alloy cast iron with platform honing, it suits general heavy-duty construction machinery and trucks.
3948095 Cylinder liner Kit Specification:
| Item | Parameter |
|---|---|
| Part Number | 3948095 |
| Interchange Part No. | 3800328, 3944344 |
| Product Type | Wet Cylinder Liner |
| Inner Bore | 114 mm |
| Total Length | 226.00 mm |
| Upper Outer Diameter | 130.0 mm |
| Lower Outer Diameter | 128.2 mm |
| Flange Thickness | 7.2 mm |
| Wall Thickness | 4.75 mm |
| Net Weight | 4.2 KG (9.26 Lbs) |
| Material | Chromium-Molybdenum-Copper Alloy Cast Iron |
| Fit Engines | 6CT8.3, ISC8.3, QSC8.3, ISL9, QSL9, 6D114 |
✅Excavators: Hyundai R290LC-7, R305LC-7; Komatsu PC300-6/7/8
✅Loaders, Rollers, Air Compressors, Generator Sets, Marine Auxiliary Engines
Why Choose us?
✅100% Genuine Parts: Directly supplied by DCEC with official certification
✅Wholesale Discounts: Tiered pricing for bulk orders and long-term cooperation
✅Professional Support: Free technical guidance from certified engineers
✅Fast Global Delivery: 24h dispatch, worldwide shipping in 3-15days
