Product Brief:

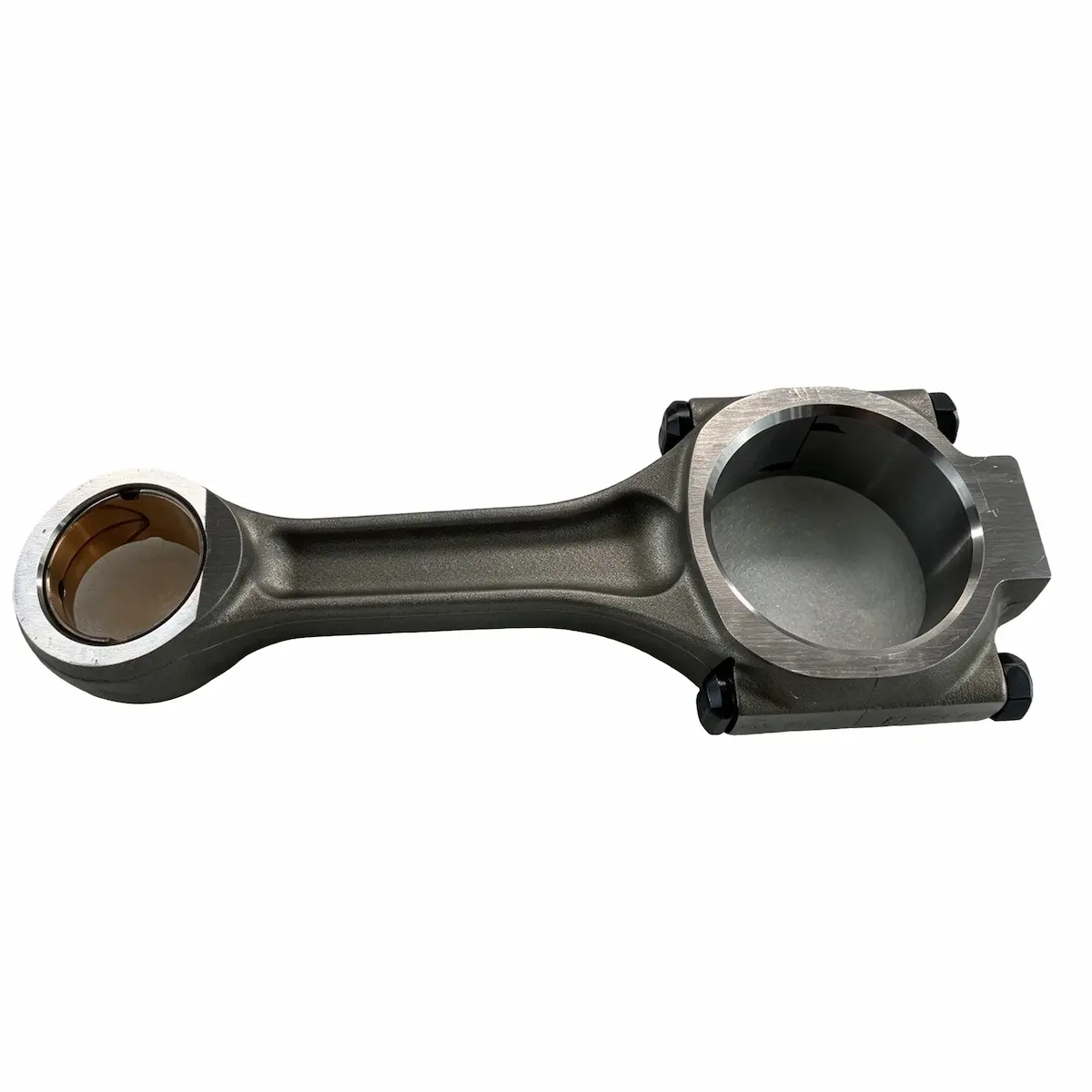

Primary standard bolt-split connecting rod for 8.3L C Series (straight cut with locating pins), baseline for 220–300 HP. For general heavy-duty moderate-impact service; benchmark aftermarket replacement, the most widely used & versatile C Series rod worldwide.
Specification:
| Item | Specification |
|---|---|
| Part Number | 3901383 |
| Cross Reference | 5266243, 4947898, 3934927 |
| Engine | Cummins 8.3L C Series, 6CT, 6CTA, early CM554 ISC8.3 / QSC8.3 |
| Power Rating | 220–300 HP |
| Construction | Alloy forged steel, bolt-split straight cut with locating pins |
| Center Distance | 300 mm |
| Big End Bore | 83 mm |
| Small End Bore | 63 mm |
| Net Weight | ~3.25 kg (7.2 lbs) |
| Feature | Internal oil passage for piston pin bushing lubrication |
| Limitation | Not interchangeable with fractured split rod 4944670 for late ISC/QSC |
Application:
✅Heavy-duty highway trucks
✅Construction machinery: loaders, mobile cranes, graders, excavators, air compressors
✅Stationary diesel generator sets (prime & standby power)
✅Marine main engines / marine auxiliary engines (moderate-duty marine service)
✅Large agricultural equipment: tractors, combine harvesters
Why Choose US?
✔️100% genuine Cummins DCEC parts
✔️Professional technical support for fitment verification・
✔️Competitive wholesale pricing
✔️Fast global shipping
FAQ:
Q1: Does 3901383 fit all C-series engines?
A1: No. Fits 6C/6CT/6CTA & early CM554 ISC/QSC 8.3 only. Not interchangeable with late 4944670 fractured rod engines or >300HP high-burst C-series. Confirm CPL/ESN prior purchase.
Q2: Does it come with rod bearings?
A2: ❌ No. Supplied with pre-installed small-end bushing only; rod bearings sold separately.
Q3: Can it replace 4944670?
A3: ❌ Not interchangeable, different big end construction. Must verify CPL / engine serial number.
