Product Overview:

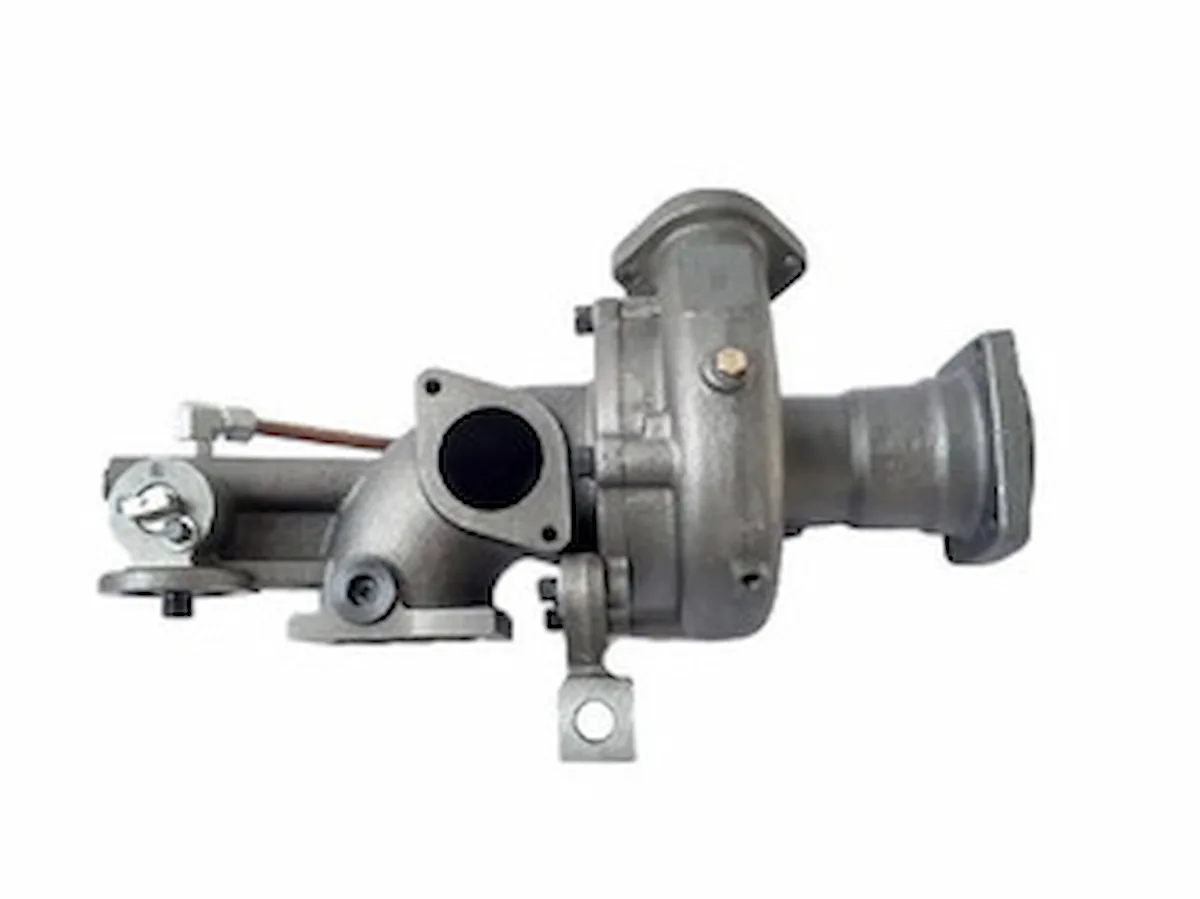

The 3011389 CCEC water pump fits Cummins K19/KTA19/QSK19/V28. Cast iron housing + reinforced alloy impeller delivers steady cooling under heavy loads. Direct bolt-on replacement for mining, marine, genset and oilfield machinery.
3011389 water pump Specification:
Parameter
Specification
Part No.
3011389
Cross Reference PN
3098969, 3098970, AR12049, 4081095
Product Name
Engine Water Pump Assembly
Fit Engines
Cummins K19/KT19/KTA19/QSK19/V28/G28 heavy-duty diesel engines
Overall Dimension
552×197×187 mm (21.75×7.74×7.36 in)
Net Weight
18.6 kg
Mounting
Flange bolt fastening, direct hole installation without modification
Drive Type
Engine gear-side driven
Rated Speed
1800 RPM
Rated Coolant Flow
264 GPM (≈1000 L/min)
Matching Power Range
350–700 HP Cummins K19 series engines
Application:
✅Mining Trucks: BELAZ 7548 and 7549 series 100-ton mining haul trucks
✅Construction Machinery: SD42 bulldozers, large wheel loaders, mining drill rigs
✅Power Units: 500–800KW Cummins KTA19 generator sets
✅Marine Vessels: K19 main propulsion engines and auxiliary engines for inland and ocean-going ships
✅Oilfield Equipment: High-power diesel power units for fracturing trucks and cementing trucks
Key Features:
✅Integrated inlet and outlet flange structure with built-in bypass copper tubing; no modification required for original mounting positions
✅High-flow impeller suitable for high-temperature heat dissipation conditions of large-displacement K19 engines to prevent engine cylinder scuffing caused by overheating
✅Built-in long-lasting mechanical water seal resistant to corrosion from seawater and ethylene glycol coolant, ideal for marine engines and heavy-duty field equipment
Why Choose US?
✅100% genuine Cummins CCEC parts
✅Professional technical support for fitment verification・
✅Competitive wholesale pricing
✅Fast global shipping
