Prodcut Overview:

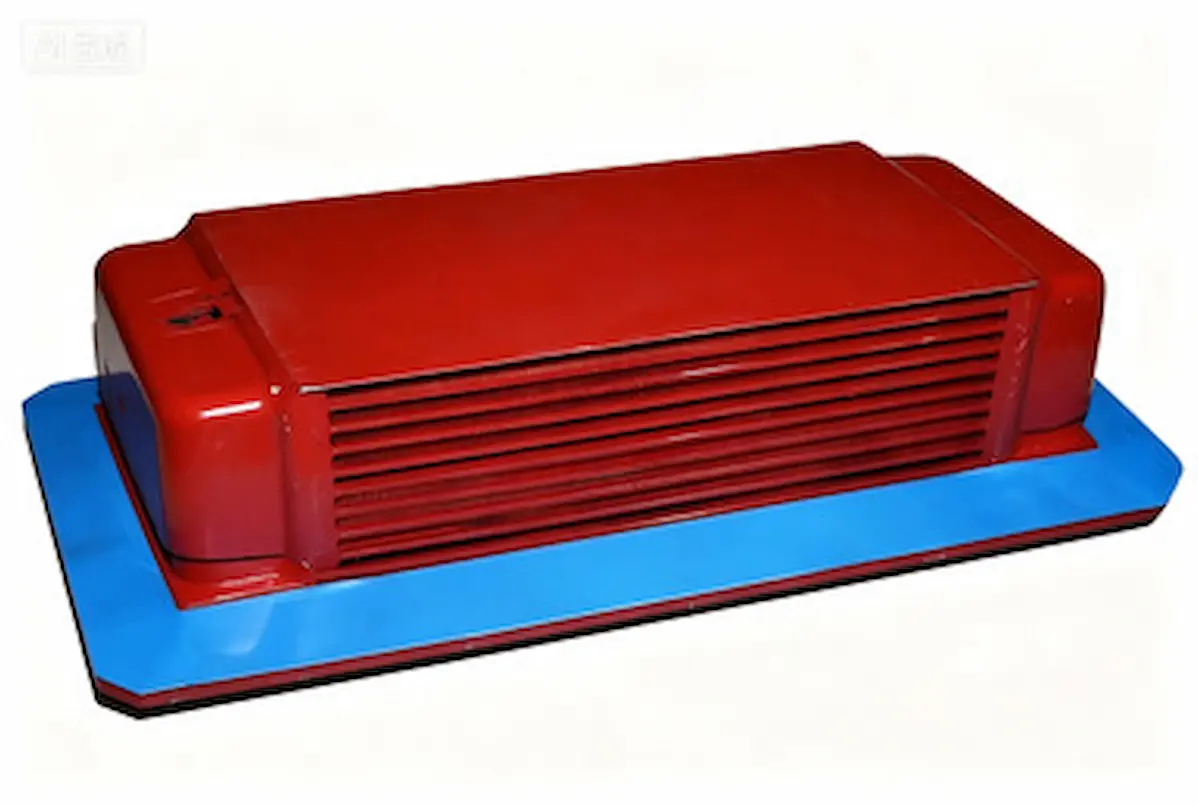

The 3068976 water-cooled aftercooler core for Cummins KTA50/K50/QSK50 engines. Copper tube-fin brazed structure cools charged air to raise power and reduce smoke. Exact size for direct replacement. Pressure & leak tested, corrosion-resistant for mining, marine and generator harsh environments.
The 3068976 aftercooler core Specification:
Item
Spec
Part No.
3068976
Type
Tube-fin water-cooled aftercooler core
Fit Engines
Cummins K50, KTA50, QSK50
Applications
Mining trucks, marine engines, large generators, oil fracturing units
Materials
Copper tubes & fins (high-temp integral brazed); cast aluminum headers; anti-corrosion epoxy coated carbon steel frame
Max intake air temp
220°C
Coolant working temp
60–95°C
Max air side pressure
0.8 MPa
Cooling performance
Drop intake temperature 35–55°C at full load
Why Choose Us?
✅Professional China-based Cummins parts supplier
✅Genuine Cummins quality, strict factory inspection
✅Direct factory supply with competitive cost advantage
✅Stable stock & fast global delivery
✅Technical matching support
