Product Overview:

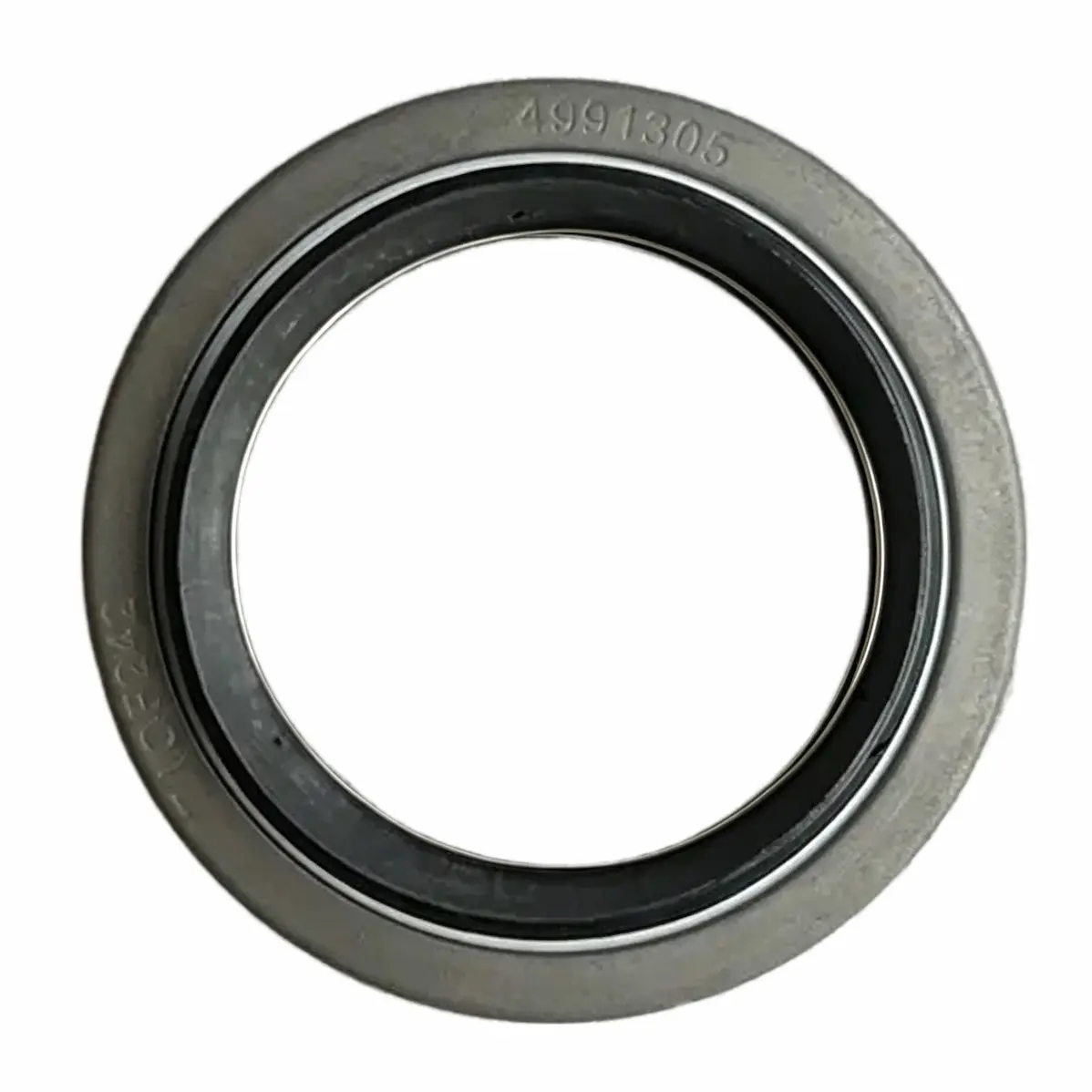

The Genuine 4991305 is Crankshaft Front Oil Seal for Cummins 6B 6BT5.9/ 4B 4BT3.9. Global mainstream aftermarket part for trucks, construction machinery and generators, favored by overseas repair shops for stable sealing and wide compatibility.
4991305 Crankshaft Front Oil Seal Specification:
Item
Parameter
Part Number
4991305
Cross Reference PN
4982415, 3968563
Mounting Position
Engine flywheel end (Rear Crankshaft Oil Seal)
Compatible Engines
Cummins 4BT3.9 / 6BT5.9 / 6BTA5.9 / QSB5.9
Dimension (ID × OD × Thickness)
95 mm × 118 mm × 12 mm
Structure
TC double-lip seal with built-in stainless steel tension spring
Standard Rubber Material
NBR nitrile rubber
Upgrade High-Temp Material
FKM fluoroelastomer (resists high temperature & diesel corrosion)
Frame
Integrated cold-rolled steel coated with rubber, anti-deformation & tight sealing fit
Single Net Weight
~0.18 kg
Operating Temperature Range
NBR: -30℃ ~ +150℃; FKM: up to 180℃
Compatible Media
Diesel fuel, engine oil, hydraulic oil
Key Features:
✅Double-lip dual function: Blocks oil leakage and prevents dust/sand intrusion into crankcase
✅Stainless steel spring maintains constant lip pressure for long-term reliable sealing
✅Two rubber grades for selection: Standard NBR for regular use, FKM for high-load high-temperature working conditions
✅Integrated steel frame retains shape, eliminates seal deformation after long operation
Application:
✅Commercial Vehicles: Cummins B-series medium trucks, dump trucks, logistics delivery vehicles
✅Construction Machinery: Loaders, excavators, road rollers with QSB5.9 engines
✅Generator Sets: Mobile/stationary industrial diesel generators
✅Agricultural Equipment: Large tractors, harvesters with 4BT/6BT power units
Why Choose US?
✅Professional China-based Cummins parts supplier
✅Genuine Cummins quality, strict factory inspection
✅Direct factory supply with competitive cost advantage
✅Stable stock & fast global delivery
✅Technical matching support for all B-series engines
