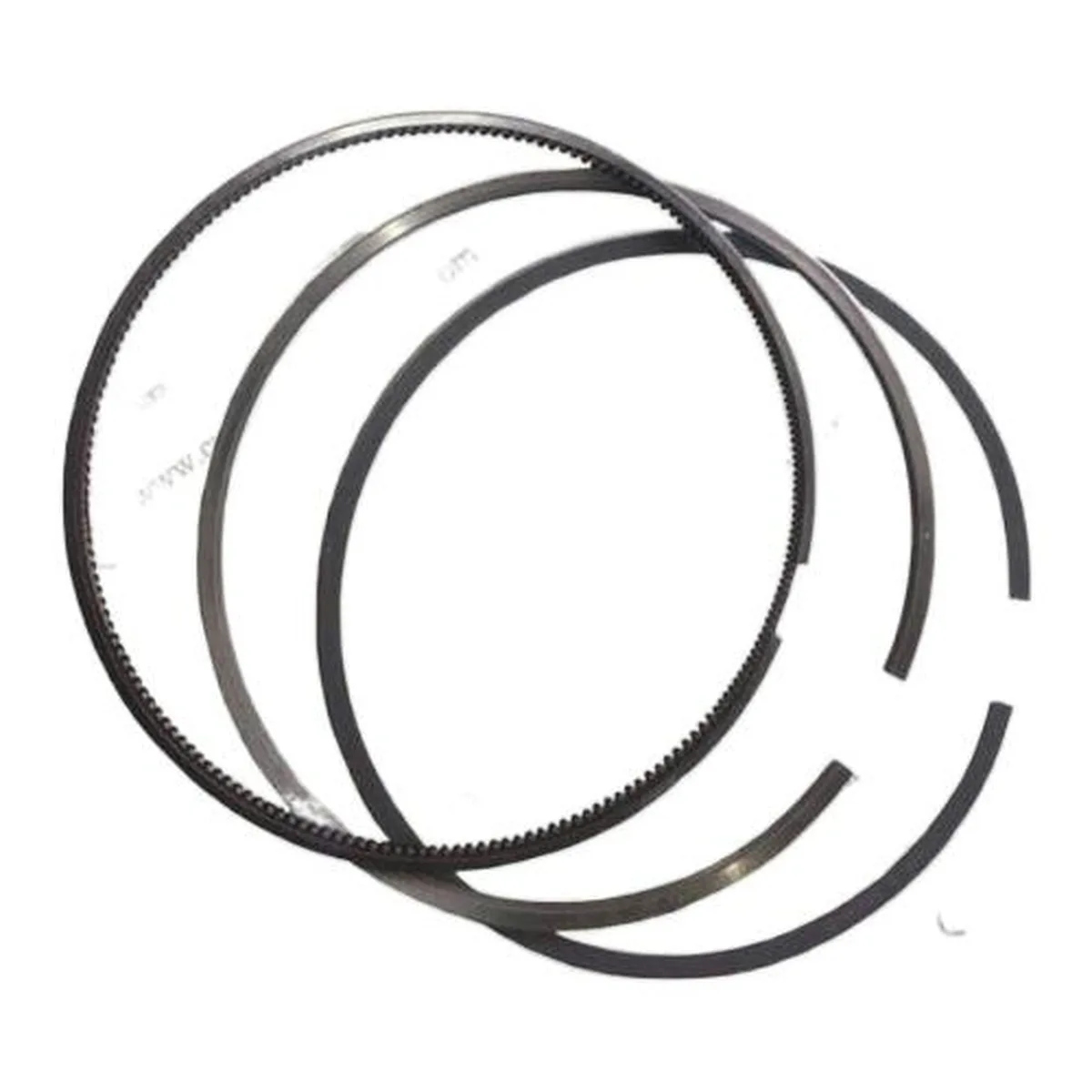

4089500 Cummins Piston Ring Kit For KTA50 KTA38 KTA19 Engines

Part Number : 4089500
Fitment : Cummins KTA50 KTA38 KTA19 Engines
Product Name : Piston Ring Kit
Quality Standard : Genuine Cummins Quality(CCEC)
Material : High Alloy Malleable Cast Iron
Lead Time : 3-15 Days Global Shipping
Pricing : China Cummins Wholesale Price
Payment Terms : T/T ,Western union, Paypal
MOQ : Bulk Orders Accepted
Product description：Cummins 4089500 Piston Ring Kit For KTA50 KTA38 KTA19 QSK38 QSK19 Engines. China Cummins Supplier WIth Low Price & Genuine Quality from CCEC.
INQUIRY

Product Overview:

The 4089500 piston ring kit is CCEC replacement for Cummins K19/K38/K50 QSK19, QSK38, QSK50 engines.Made of high-strength alloy steel, it provides tight sealing and great wear resistance for gensets, marine vessels and heavy-duty trucks.

4089500 piston ring kit Specification:

Parameter	Specification
Assembly Part No.	4089500
Product Name	Piston Ring Kit
Fit Engines	KTA19, KTA38, KTA50, QSK19, QSK38, QSK50
Standard Cylinder Bore Diameter	158.75 mm
Oversize Repair Sizes	STD / +0.25 / +0.50 / +0.75 / +1.00 mm
Ring Composition	2 compression rings + 1 slotted combined oil ring with internal expander spring
Net Weight Per Set	Approx. 0.6 kg (1 set per cylinder; 6 sets required for 6-cylinder engines)
Top Compression Ring	Barrel trapezoidal profile, full hard chrome coating
Second Compression Ring	Unidirectional twist taper face for oil scraping & blow-by/carbon buildup prevention
Oil Control Ring	Evenly distributed oil return slots, expander spring for constant radial tension

Key Features:

✅Ring Body: Alloy Cast Iron / Ductile Malleable Cast Iron

✅Wear-Resistant Working Surface: Full-ring hard chromium electroplating to extend service life and reduce cylinder liner wear

✅Inner Expander Spring for Oil Ring: Spring Alloy Steel, which maintains constant contact with the cylinder wall and delivers stable oil control without failure over long-term operation

Application:

✅Mining Equipment: BelAZ 75500 Series Mining Dump Trucks

✅Construction Machinery: High-horsepower bulldozers including Shantui SD42

✅Marine Power: Marine Main Engines, Marine Auxiliary Engines

✅Industrial Power: High-power Diesel Generator Sets, Oilfield Fracturing Units

Why Choose US?

✅100% genuine Cummins CCEC part

✅Professional technical support for fitment verification・

✅Competitive wholesale pricing

✅Fast global shipping
