Product Overview:

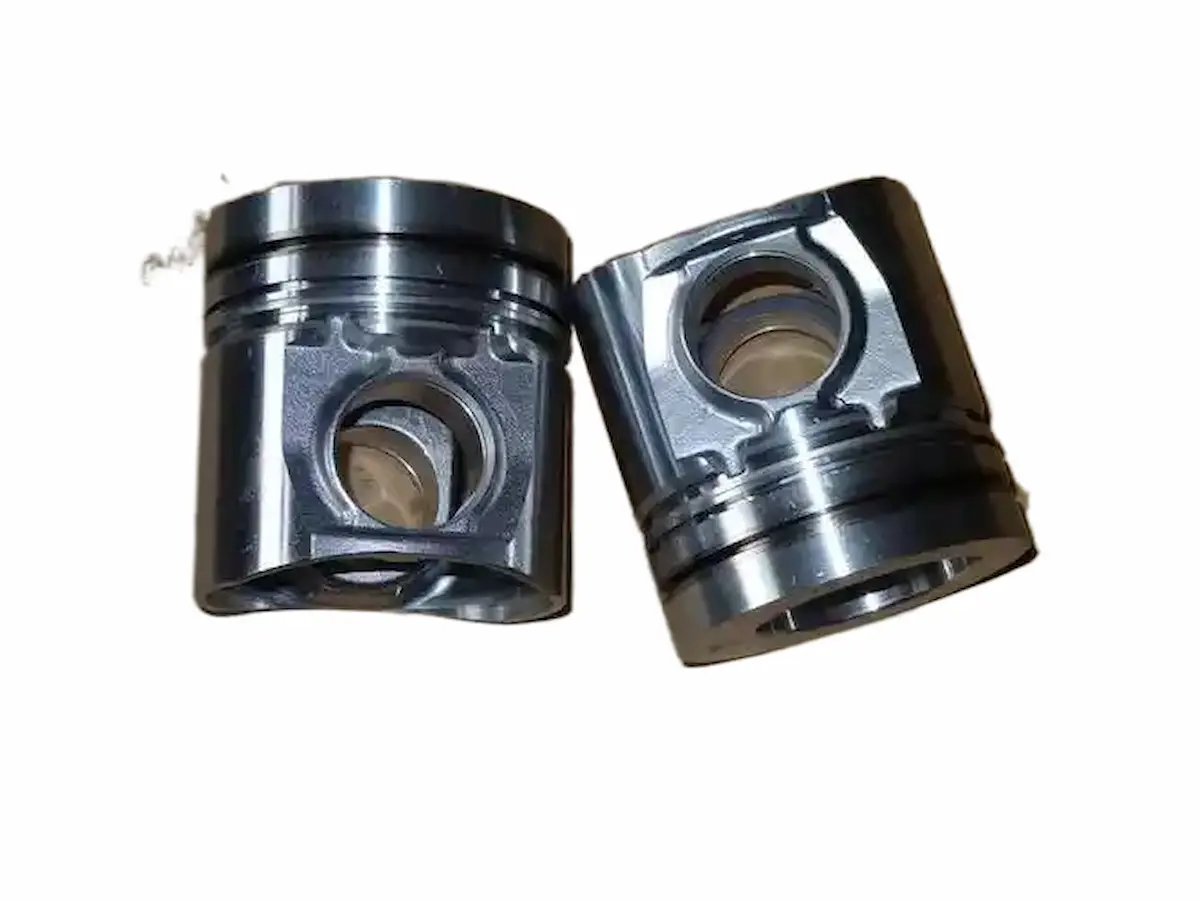

Cummins DCEC STD 3907156 Piston For Cummins B-Series (4BTA3.9/6BT5.9), light & medium duty diesel engines. Designed for short-haul heavy load & continuous operation, it features high strength, heat resistance and excellent wear resistance. ideal for commercial vehicles, construction machinery and power units.
3907156 piston Specification:
Part No: 3907156, interchangeable with 3802100 Manufacturer: DCEC
Fitment: Cummins B-Series Non-Emission Turbocharged & Aftercooled engines
| Parameter | Value |
|---|---|
| STD Bore Size | 102.019 mm (4.02 in) |
| Total Height | 105.2 mm |
| Compression Height | 71.5 mm |
| Piston Pin | 40 mm diameter, 76 mm length |
| Single Piston Weight | 1.794 kg |
| Combustion Bowl Depth | -17.5 mm |
| Combustion Bowl Diameter | 63.9 mm |
| Compression Ratio | 16.5:1 |
| Piston Rings | 2 compression rings + 1 oil control ring; thickness: 2.385mm & 4.0mm |
✅Commercial trucks & light trucks: Dongfeng cargo trucks, short-distance freight vehicles
✅Construction machinery: Small & medium equipment including loaders, excavators, forklifts, motor graders
✅Generator sets: 50–150kW diesel generators for standby & continuous operation
✅Coaches & minibuses: Intercity passenger buses, commuter vehicles
✅Agricultural machinery: Large tractors, combine harvesters for field work
Why Choose US?
✅Genuine standard quality, direct plug-and-play fit
✅Heavy-duty durable, heat & wear resistant
✅ Precision machining extends engine lifespan
✅Factory price lowers maintenance cost
✅ Professional technical matching support
