Product Overview:

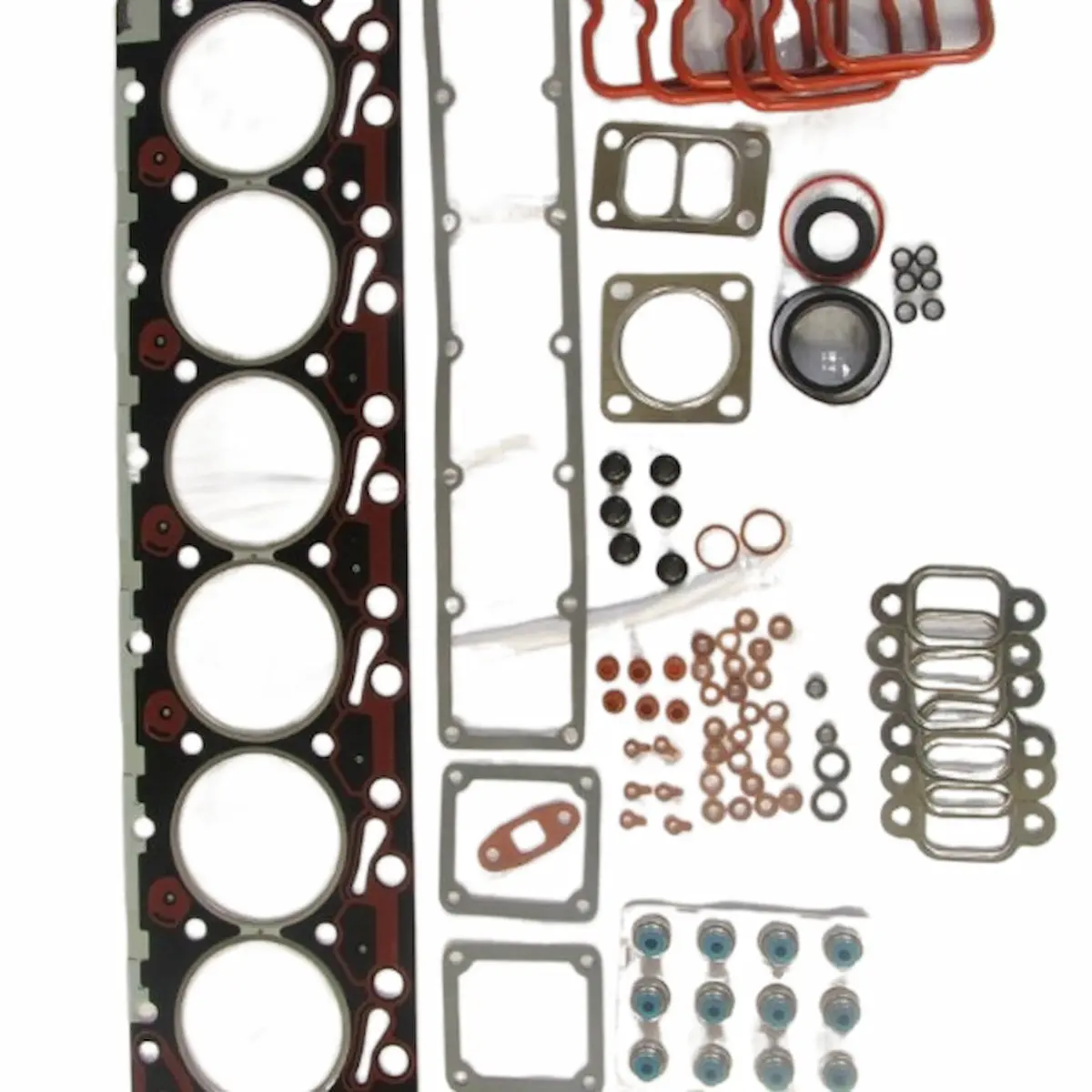

The 3804897 upper gasket kit suits Cummins 6BT/6BTA5.9 12V mechanical engines.It contains all top-end sealing parts like multilayer steel head gasket, manifold gaskets and valve seals. Made of high-temperature resistant materials to stop fluid leakage for trucks, excavators and gensets. Strict Original DCEC sizing enables direct installation.
3804897 upper gasket kit Specification:
| Item | Specification |
|---|---|
| Part Number | 3804897 (DCEC Upper Head Gasket Set) |
| Cross Reference | 3802363, 3802243, 3802226, 3802026, 3802025 |
| Compatible Engine | Cummins 6BT5.9/6BTA5.9, QSB5.9 (12V 5.9L inline 6); CPL 596/597/598/599/600/691/692/712/713 |
| Application | Komatsu 6D102, Dongfeng engine, 1989–1998 Dodge Ram pickup; Production year:1983~2003 |
| Product Scope | Upper overhaul kit only, excludes oil pan gasket |
| Head Gasket Material | Multi-layer steel graphite composite, ≤550°C heat resistant, max 12bar pressure |
| Other Gasket Material | Oil-resistant composite non-asbestos sheet; FKM fluoro rubber for O-rings |
| Kit Components | 1pc cylinder head gasket, 6pcs valve cover gaskets, full intake/exhaust manifold gaskets, 6 sets injector copper sleeves & seals, assorted small O-rings & auxiliary seals |
✅ Scenarios Specially for 6BT engine cylinder head removal, valve replacement, cylinder head repair and upper-middle engine overhaul.
✅ Fit for: loaders, excavators, coaches, trucks, 50~160kW diesel generator sets and agricultural tractors.
Why Choose Us?
✅ Produced per Original Cummins DCEC mold standards
✅ All gaskets made of high-temperature and oil-resistant materials, delivering a minimum 8,000-hour service life under heavy-duty construction machinery working conditions.
✅ In-stock items available, shipped globally from multiple warehouses; orders accepted for small lots or full container loads.
✅ Quality warranty included: free replacement for defective sealing parts caused by production flaws after installation.
