Product Overview:

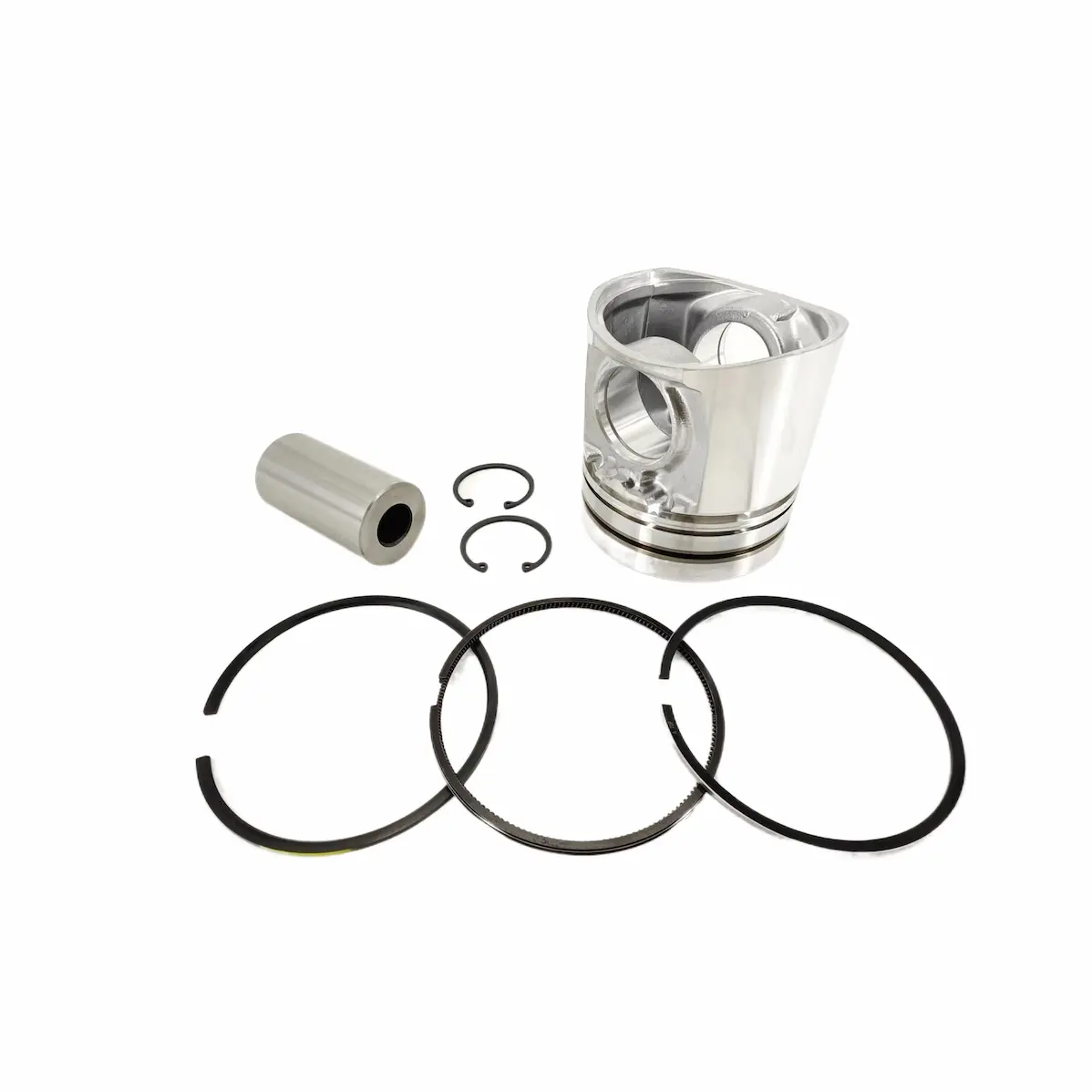

Cummins 3802160 piston assembly is an Original replacement for 4BT/6BT 12V turbo diesel engines. Built with high-strength cast iron and a marine combustion bowl, it ensures stable performance under heavy loads and continuous operation. Ideal for machinery, generators, marine and truck applications, it fits Original specs for direct plug-and-play installation, reducing maintenance costs and downtime.
3802160 piston Specification:
| Item | Specification |
|---|---|
| Part Number | 3802160 |
| Compatible Engine | Cummins 4BT3.9 / 6BT5.9 12V Turbo Diesel |
| Bore Size | 102 mm (STD Standard) |
| Compression Ratio | 17.5:1 |
| Piston Material | High-strength cast iron |
| Combustion Chamber | Marine bowl design |
| Piston Pin Diameter | 38 mm |
| Compression Height | 78.5 mm |
| Rings Configuration | 2 compression rings + 1 oil ring |
| Unit Weight | 1.34 kg |
| Included Parts | Piston, piston rings, piston pin, retaining clips |
Applications:
✅Fits Cummins 4BT/6BT 5.9L 12V engines for construction machinery, generators, marine systems and heavy trucks
✅ Built for long-hour, high-load use in harsh conditions
✅Delivers stable power and lowers engine failure rates across all key applications
why Choose us?
✅Genuine quality, perfect fit for direct replacement
✅ Durable construction for long service life
✅ Strict quality control, reliable performance
✅Competitive price & fast delivery
