Product Overview:

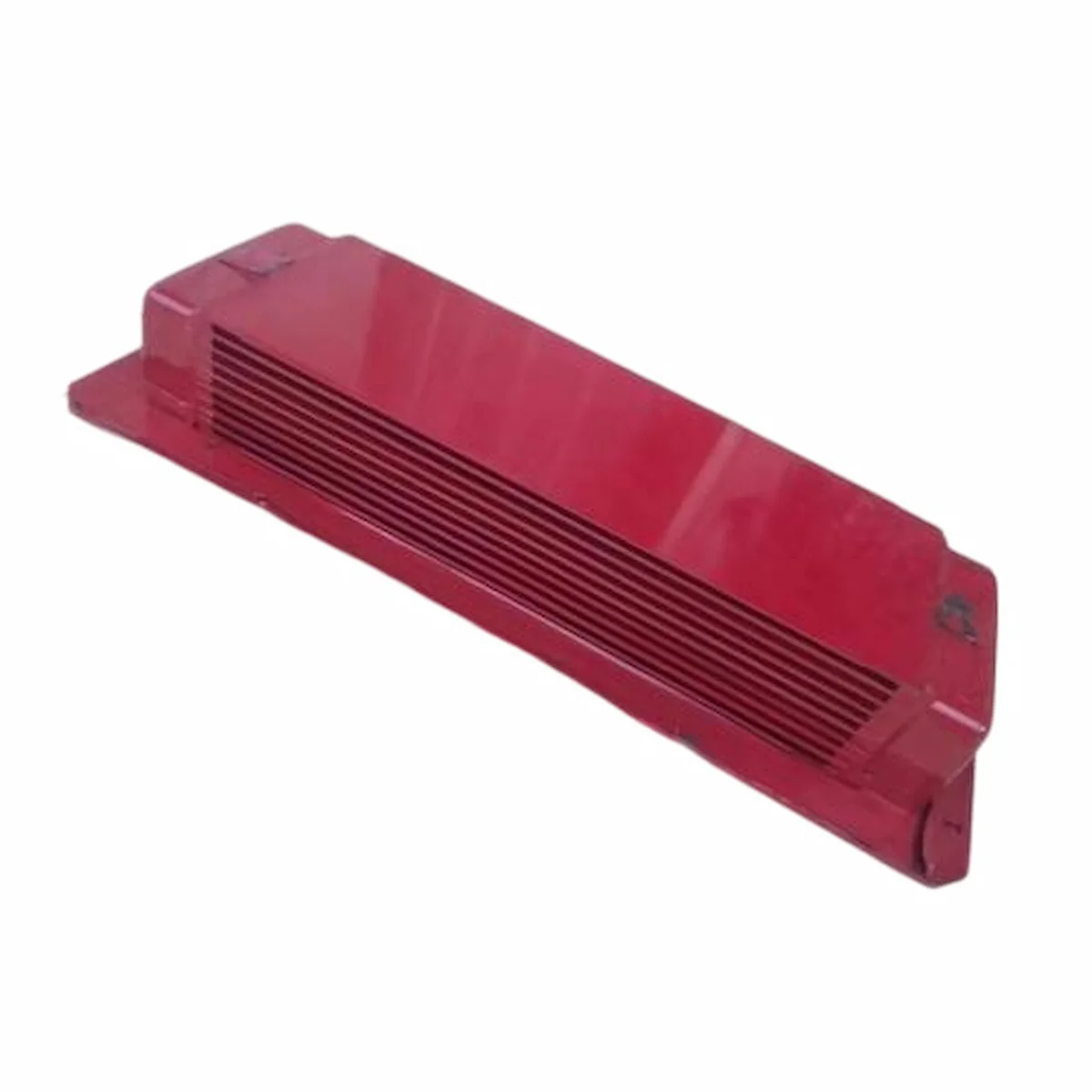

The 3638360 Latest copper water-cooled aftercooler core for post-2010 KTA50/K50/QSK50 16-cylinder engines. High flow & heat dissipation, Operating Condition Positioning: Designed for high-power, long-duration and harsh operating conditions involving ships, large power stations and heavy mines under 24-hour continuous full-load operation.
3638360 aftercooler core Specification:
Parameter
Specification
Part No.
3638360
Official Name
Aftercooler Core
Cross Reference PN
3049521, 3065432, 3068976
Fit Engines
KTA50, QSK50, G50 16-cylinder high-power Cummins engines
Cooling Type
Tube-fin water-cooled charge air cooler
Core Size
965(L)×620(H)×145(Thick) mm
Overall Size with Flange
1010×665×152 mm
Net Weight
24.8 kg
Gross Weight (Packed)
27.5 kg
Mounting Flange
Integrated cast steel base, 6 standard M16 mounting bolts
Key Features：
✅Vacuum high-temp integral brazing for continuous full-load & thermal cycling.
✅Stainless steel water plates + thickened aluminum turbulence fins, anti-corrosion for land & marine cooling.
✅integrated cast steel flange, direct bolt-on replacement without housing modification.
Main applications:
✅Marine propulsion: KTA50-M marine engines
✅Stationary power: QSK50-G diesel/biogas generators
✅Heavy-duty equipment: 100-ton mining trucks, mine power stations, oil drilling rigs, industrial pumps & air compressors
Why Choose US?
✅Professional China-based Cummins parts supplier
✅Genuine Cummins quality, strict factory inspection
✅Direct factory supply with competitive cost advantage
✅Stable stock & fast global delivery,Technical matching support
