Product Overview:

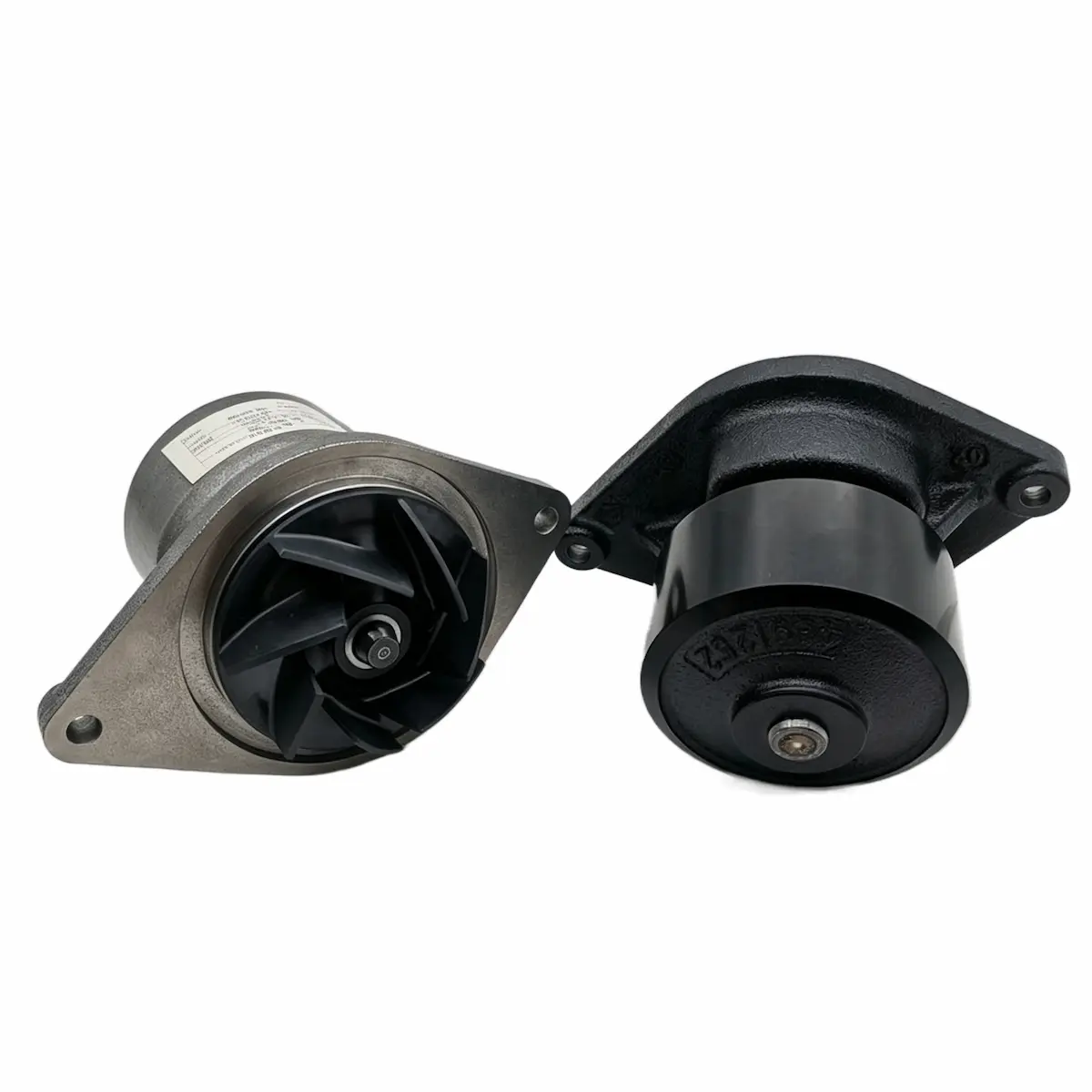

The Cummins 3286275 Standard water pump for Cummins 4BT/6BT (3.9L/5.9L). Medium load, general-duty. Upgraded carbon-ceramic seal & optimized 5-blade impeller for reliable cooling. Main apps: trucks, construction machinery, generator sets.
Key Features:
✅Carbon-ceramic seal – heat/aging resistance, low leakage
✅Optimized 5-blade impeller – high flow, anti-cavitation
✅Cast iron housing – robust, corrosion-resistant
✅Reinforced bearing – stable operation, extended life
3286275 Water PUmp Specification:
|
Item
|
Parameter
|
|---|---|
|
Part Number
|
3286275
|
|
Product Grade
|
Standard Duty (Medium Load, General Operating Conditions)
|
|
Compatible Engine
|
Cummins 4B/4BT/4BTA 3.9L, 6B/6BT/6BTA 5.9L
|
|
Housing Material
|
Gray Cast Iron HT200
|
|
Impeller Spec
|
5-blade cast iron, anti-cavitation flow optimization
|
|
Mechanical Seal
|
Carbon-ceramic static seal, nitrile rubber secondary seal
|
|
Bearing Type
|
Double row sealed precision bearing
|
|
Rated Flow Rate
|
128 L/min @ 2500 Engine RPM
|
|
Working Temperature Range
|
-40℃ ~ 115℃
|
|
Mounting Interface
|
2-bolt standard OE flange, direct bolt-on replacement
|
|
Dry Weight
|
2.72 KG
|
Why Choose US?
✅Genuine Cummins quality, perfect fit for direct replacement
✅ Durable construction for long service life
✅ Strict quality control, reliable performance
✅Competitive price & fast delivery
