Product Overview:

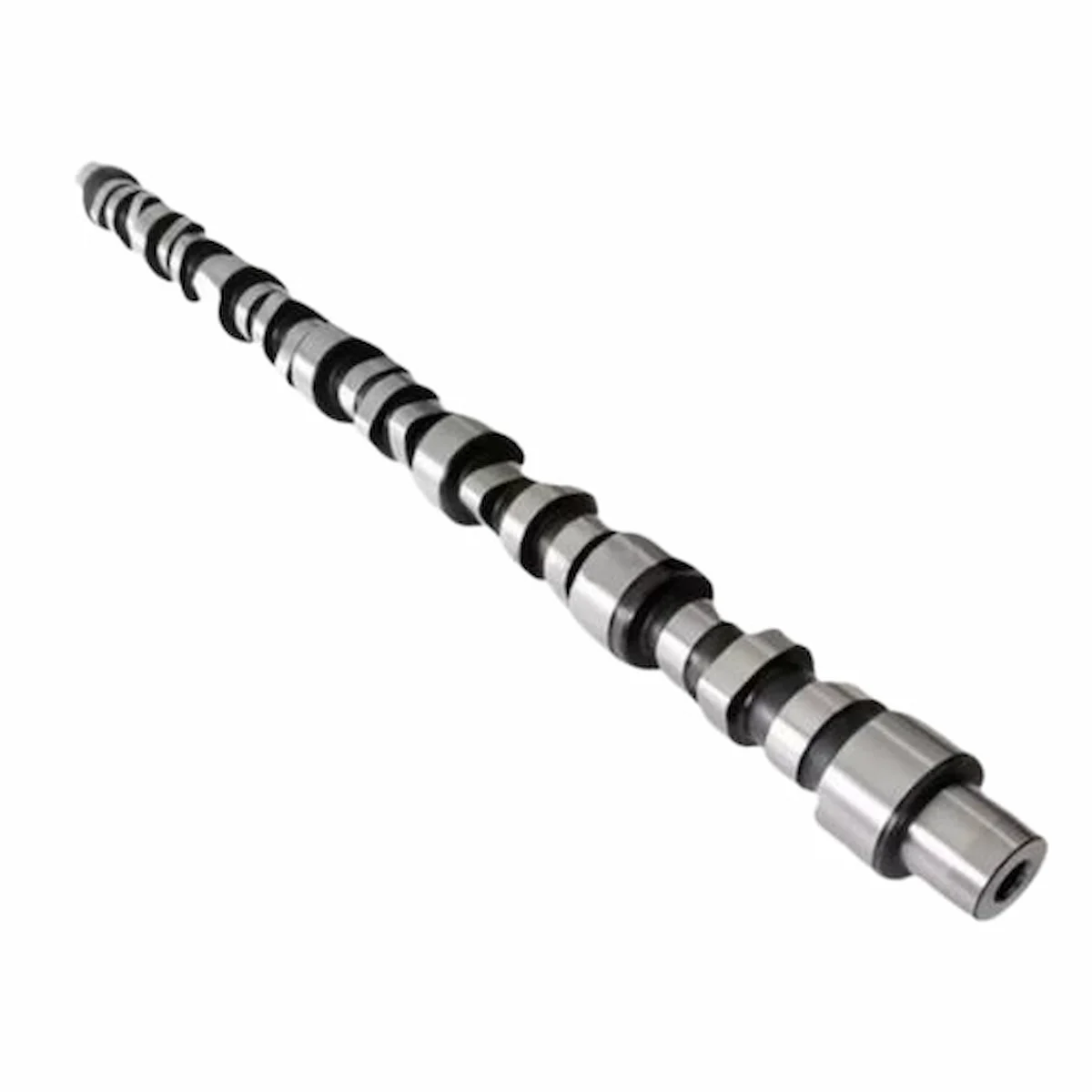

The 3066885 High-quality CCEC camshaft compatible with Cummins KTA38 series engines. Made of high-strength cast alloy, it provides accurate valve movement for medium-to-large industrial equipment. Compact and durable structure balances daily operation stability and cost-saving maintenance.
Key Features:
✅Direct upgrade replacement for PN 3013091 & 3062076, plug-and-play on all KTA38 mechanical injection engines
✅Wider cam lobes expand bearing contact area by 30%, eliminating pitting & early wear
✅Deep induction hardening (45–50 HRC), 40% longer service life than older models
✅High-strength ductile cast iron, superb fatigue & shock resistance for mining, marine & genset heavy-duty use
3066885 camshaft Specification:
Parameter
Specification
Full Part No.
3066885 (3066885-20)
Cross Reference PN
3066891, 3062076
Fit Engines
Cummins K38, KTA38, QSK38 V12 diesel engines
Mount Feature
Single bank camshaft for V-engine, gear timing drive, integrated PT injector cams
Cam Base Circle Dia.
1.968 ± 0.001 in (≈49.99 mm)
Cam Layout
6 cylinders per bank; intake, exhaust & injector cam per cylinder, total 18 cam lobes
End Structure
Timing gear mounting flange + axial thrust positioning
Base Material
Forged Alloy Steel
Surface Hardness
45 – 50 HRC
Applicable Power Range
600 – 1200 HP heavy-duty engines
Single Net Weight
58 ~ 60 kg (128 ~ 132 lbs)
Application:
Mining Dump Trucks, Large Generator Sets, Marine Main Engines, Mining Construction Machinery, Heavy-Duty Pump Stations
Why Choose US?
✅100% genuine Cummins CCEC parts
✅Professional technical support for fitment verification
✅Competitive wholesale pricing, Fast global shipping
✅12-month warranty against manufacturing defects
