Product Overview：

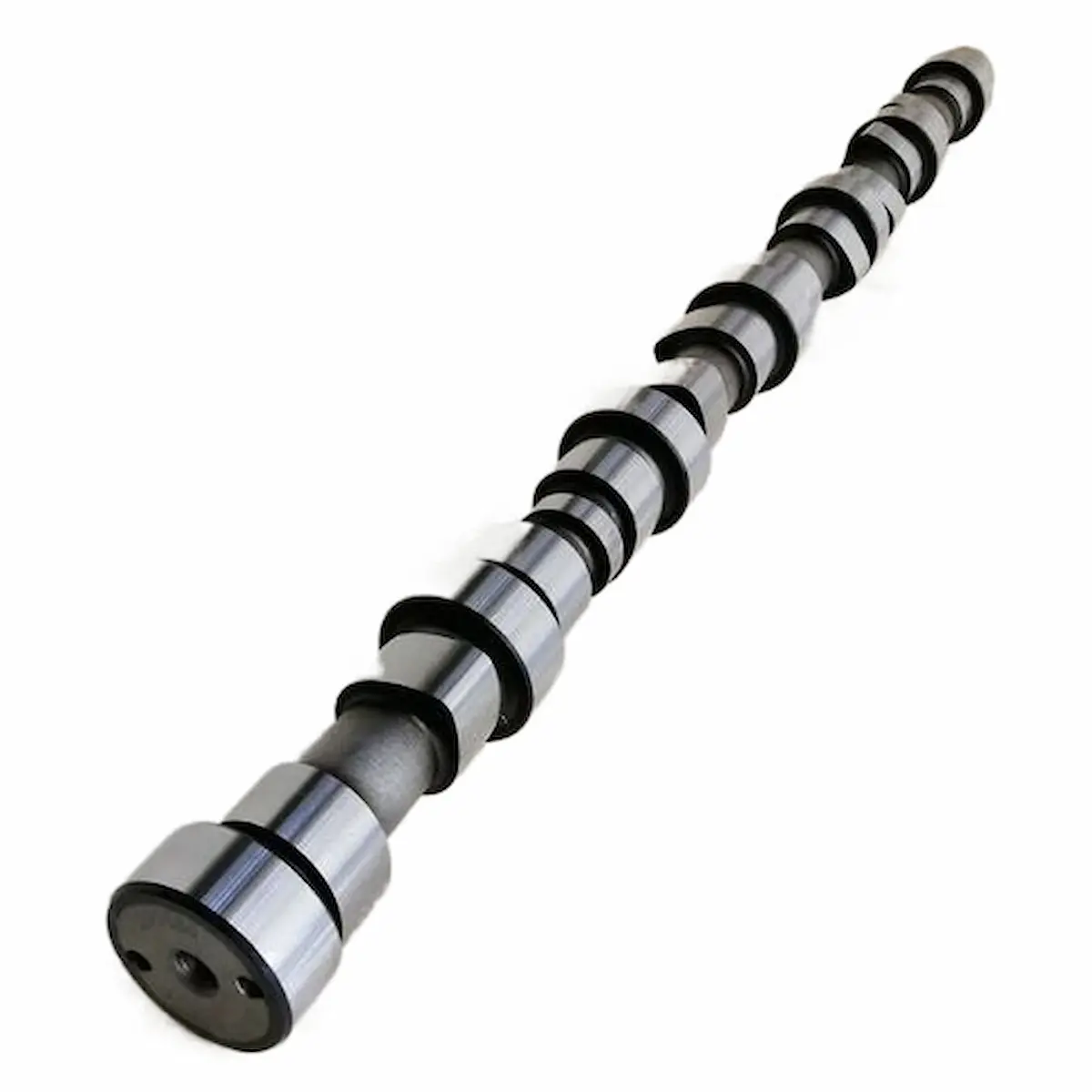

The 3066882 is a major upgraded camshaft developed by Cummins for the high-power 400kW heavy-duty KTA19 engine series. Designed with core objectives of sustained full-load durability and high power output, it is specially applied to mining equipment, marine engines and high-power constant-load power stations, serving as the preferred standard replacement part for overhauling high-power K19 engines in the global aftermarket.
3066882 camshaft Specification:
Item
Specification
Part No.
3066882 (3066882-20)
Compatible Engines
KTA19, KTTA19, KTA19-G3, QSK19 inline 6-cylinder 2-valve engines; CPL1455 400kW gensets
Displacement
18.9 L (159 mm bore × 159 mm stroke)
Power Coverage
400–550 kW heavy-duty models; differs from low-power PN 3066880 (≤330 kW)
Construction
One-piece forged steel, inline six-cylinder design; each cylinder fitted with intake, exhaust & PT injector cam
Total Cam Lobes
18 lobes (6 intake + 6 exhaust + 6 fuel injector)
Matching Tappet
Flat mechanical tappets only; roller tappets incompatible
Net Weight per Unit
26 kg
Outer Package Dimension
1310 mm total length, 92 mm diameter, single-unit wooden case
Shipping Gross Weight
29 kg (includes anti-rust wooden box, oil seal, thrust washer accessories)
APPlication:
✅Marine main engines / Marine generator sets
✅Large mining dump trucks, heavy construction machinery
✅Oilfield power equipment, stationary diesel generator sets
✅High-power tractors, mining engineering machinery
Why Choose Us?
✅Trusted supplier of CCEC-approved camshafts for industrial engines
✅Competitive wholesale pricing for distributor partnerships
✅Quick 3-15 day lead time for international shipments
✅Professional guidance on engine part compatibility & installation
✅Comprehensive inventory of K Series engine rebuild parts
